200 Watt mat without thermostat

Quality Heating electric underfloor heating mats provide reliable and efficient heating for your tiled floors. Our heating mats are also suitable for various other floor finishes. (Installation methods vary; you can call us for appropriate advice).

Each Quality Heating underfloor heating mat is supplied with a lifetime warranty*.

Do you have questions before or during the installation of our products? Quality Heating always gives you appropriate technical support for every situation. Quality Heating underfloor heating sets are 100% complete and ready to use. Our packages include all materials you need to install underfloor heating in your home (+ detailed instruction manual).

Choose the desired power/area** in the selection table above, next to the photo. The price will be automatically adjusted and displayed for you.

*Note: the lifetime warranty applies only to Quality Heating products. For products originating from other brands, the warranty conditions of the respective manufacturer apply.

**Choose an electric underfloor heating set that covers 90% of your floor area. It is better to order a few centimeters too little than to overestimate, as the cables cannot be cut or shortened.

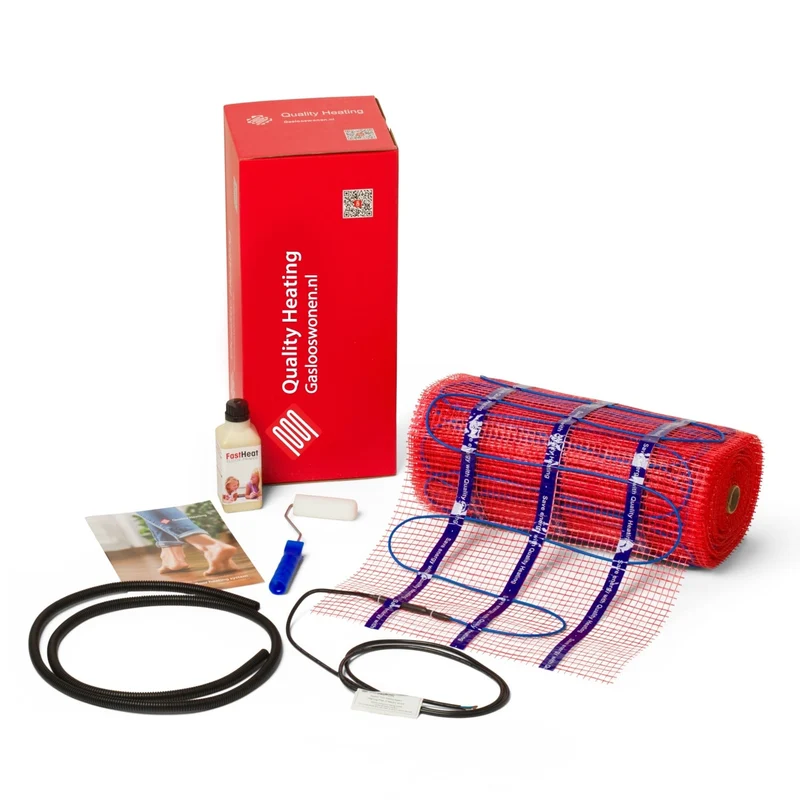

Electric underfloor heating set includes the following components:

Quality Heating underfloor heating mat (or 2 mats if over 12m2)

The Quality Heating mat is approx. 2.9 mm thin and can be embedded directly in the adhesive layer.
The ultra-thin cable guarantees the lowest build-up height.
The Quality Heating cable contains insulation made of 100% PTFE (Teflon) and no PVC.

FastHeat floor primer / primer

The floor primer has been a best-seller in the United Kingdom for years. Quality Heating is the first supplier to introduce this excellent product to the Dutch consumer. The FastHeat Floor Primer from Quality Heating ensures optimal heat transfer, resulting in lower energy consumption. The primer helps keep moisture out of the system and is suitable for various substrates, such as plaster, wood and tiles.

The FastHeat Floor Primer is offered to you free as a supplement in your chosen underfloor heating set. For more information about the FastHeat floor primer, click here.

Roller

For easy application of the primer to the subfloor.

Specifications

You will receive a lifetime warranty on the Quality Heating mat here. Below are the advantages of the Quality Heating mat:

• No chiselling, breaking or milling work required;
• Can be embedded directly in tile adhesive or levelling compound;
• Efficient and energy-saving control;
• Maintenance-free heating;
• Low purchase costs;
• The solution for underfloor heating when there is little build-up height;
• Faster warm-up time thanks to the supplied primer;
• Comfort;
• Can be used as primary heating or supplemental heating;
• VDE approved;
• Customer service available for all your questions. The Quality Heating mat is produced to be easily installed;
• Suitable for all subfloors.

[break]

Installation

All products and manuals can be downloaded here. For technical questions before or during installation you can contact one of our heating advisors by phone.

Quality Heating electric underfloor heating is designed so that it can be installed easily.

Tips;

1. Measure the total area of the space to be heated - deduct 20 cm from the edge and do not place under toilets, fixed furniture attached to the floor or under shower trays. For a heating area of e.g. 3.8m2, choose a 3.5m2 mat set.
2. The Quality Heating mat sets have a width of 50cm. For a mat of, for example, 3.5m2 you will receive a mat 7 metres long and 50cm wide. The individual runs can be placed next to each other. You can cut the mat mesh yourself to create turns. Never cut the mat cable to shorten it.
3. If you have a wooden subfloor you are required to use the ISO-64 insulation boards. The supplied FastHeat ensures faster warming of the underfloor heating. This primer can also be used as a primer for the levelling compound.
4. Place the floor sensor in a separate conduit. The sensor must come out between the underfloor heating cables for a correct measurement. Once the mats are placed, you can tile directly on them or spread a layer of levelling compound over the mats. Manuals can be downloaded here.

[break]

V1 Touch Wifi thermostat Black

The V1 Touch Wifi thermostat with beautiful design, controllable from a smartphone, tablet or computer. It learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example what the temperature should be set to when you are not at home.

More information about the Manual thermostat click here

V1 Touch Wifi thermostat White

The V1 Touch Wifi thermostat with beautiful design, controllable from a smartphone, tablet or computer. It learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example what the temperature should be set to when you are not at home.

More information about the Manual thermostat click here

Simple Manual

A simple but highly accurate thermostat that takes into account the residual heat of the installation. It switches the installation off or on based on the set temperature. This way the heat still in the system on its way is fully used for the room to be heated, without exceeding the desired temperature.

More information about the Manual thermostat click here

PRF-78 white or black

The PRF-78 has a beautiful design with soft-touch buttons. The touch screen thermostat is a programmable room thermostat that can be connected to your electric underfloor heating. This thermostat has a striking appearance and is one of the most advanced of its kind. The Soft Touch 7-Day Programmable thermostat comes with a 2-year factory warranty.

For more information about the PRF-78 click here. Would you prefer to receive a different type of thermostat? At 'make a choice' you can add your suitable thermostat.

PRF-79 Wifi

The user-friendly PRF-79 Wifi electric underfloor heating thermostat that can be operated with the APP. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.

More information about the PRF-79 Wifi thermostat click here

PRF-80 Wifi

Wifi thermostat with a beautiful design. The PRF-80 Wifi electric underfloor heating thermostat is controllable with the app. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.

More information about the PRF-80 Wifi thermostat click here

OCD5 Busch Jaeger and Jung

OCD5 Busch Jaeger and Jung Unique recessed 7-day programmable thermostat with an adaptive self-learning warm-up (optimizer) control and a colour touch screen. Can be set to multiple languages (NL, FR, DE and English) and fits perfectly into Busch Jaeger switching material (also fits other switch systems, GIRA and ELKO). Adaptive control and energy-saving warm-up program. Can use floor and room temperature or both.

More information about the OCD5 thermostat click here

Heatit z-wave TRM3 home automation thermostat

Magnum Z-wave home automation thermostat from Heatit equipped with the latest developments. This thermostat can be controlled with your smartphone or tablet. Fully 7-day programmable and available in white or black. Supplied including floor sensor and Dutch manual. Thermostat works with Sensio, Fibaro and Zipato home automation systems. This thermostat is supplied standard with floor sensor.

More information about the Z-wave thermostat click here

Wifi V3 thermostat with receiver

With the Wifi V3 thermostat with receiver relay systems are a thing of the past! The thermostat, because it is powered by 2 x AA batteries, can be placed anywhere in the house and is wirelessly connected to the receiver. The receiver allows underfloor heating to be connected up to a maximum power of 3000 Watts. If you plan to use more than 3000 Watts, you can easily expand the set with an additional receiver.

More information about the Wifi V3 thermostat with receiver click here

Warmup 6IE Wifi thermostat

The 6iE Smart Wi‑Fi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example what the temperature should be set to when you are not at home.

More information about the Warmup 6IE thermostat click here

MWCD5 Wifi OJ electronics

OJ Microline WCD-5 Wifi thermostat controllable with your smartphone. Highly advanced Wifi thermostat with programmable options fully configurable via your phone. The WCD-5 thermostat also allows you to view the power consumption of your underfloor heating. The underfloor heating thermostat is equipped with a frame set that fits standard Busch Jaeger switch material. The WCD-5 thermostat makes it possible to switch your heating system on at pre-set times on any day of the week.

More information about the OCD5 Wifi thermostat click here
