50cm - 80 Watt/m² infrared underfloor heating

Order your Quality Heating infrared underfloor heating foil easily online at Quality Heating Underfloor Heating. With an extensive range of products for electric underfloor heating systems, you can order the materials for your underfloor heating in our webshop. Ordered today is delivered the next working day!

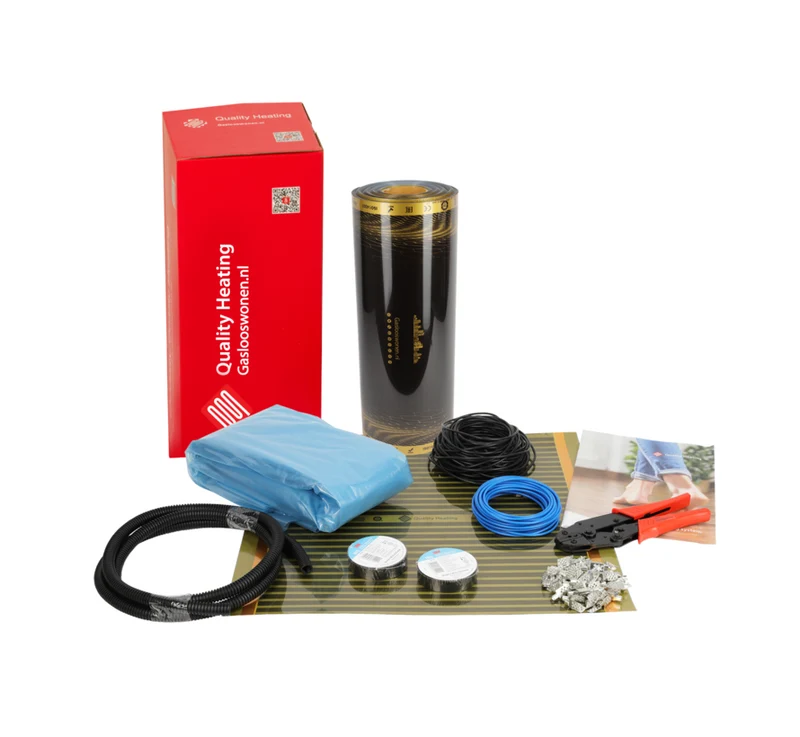

Contents of Quality Heating foil set

1 x Infrared heating foil. Choose the number of m2 yourself; primary heating or as secondary heating
1 x Floor sensor with flexible sensor tube
2 x PP tape
Heat-shrink connectors (8 pieces) depending on the area.
Connection wires black and blue (2 x 10 meters)
Step-by-step installation instructions with telephone helpdesk

Required power

Each room requires a different power. If you want to heat a bedroom as primary heating, we recommend a 120 Watt per m2 system. Do you want to heat your living room with a total area of 40 m2, net 36 m2? Then we also recommend a 120 Watt per m2 system. If you want to use the system as secondary heating, we always recommend 80 Watt per m2. For laminate, wood and parquet the floor limit must be restricted to 28 degrees Celsius. Always check with the relevant floor supplier whether your floor covering is suitable in combination with underfloor heating. And verify the specifications together with your system. Do you have any questions? Contact Quality Heating customer service via 072-808 0179 or [email protected].

No rights may be derived from the power required in this calculation. These are, where possible, based on practical tests and numerical approximations.

Thermostat control

From simple 'on/off' thermostats to advanced home automation thermostat controls, Quality Heating has them in its range. In the thermostat overview you can see all available thermostat controls. If you want a standard digital programmable thermostat, we recommend the PRF-78 in white or black (this is supplied as standard).

WiFi control

Do you have multiple rooms to heat? Then we recommend the WiFi system developed on our own platform, the PRF-79 or PRF-80. Changing the temperature, setting a program or timer — you can do everything quickly and easily with the Quality Heating app on your phone. Do you want to control your lighting, infrared panels or boiler remotely in the future (for example from the office)? This is also possible with the Quality Heating app. There are no costs associated with the application. More information.

If you have questions, contact Quality Heating customer service via 072-808 0179 or [email protected].

Extra information underfloor heating foil

• Specially developed for installation under wood, laminate and parquet
• Ultra-thin: only 0.3 mm
• Easy installation and customer service available for technical support
• Easy to cut to size
• Energy-efficient thanks to the supplied touch smart control thermostat
• Choice of 4 different power ratings: 80 Watt/m2, 100 Watt/m2, 120 Watt/m2 and 140 Watt/m2
• Width of 100 cm, multiple strips can be installed side by side
• ISO-84 insulation developed for under a foil system. Temperature resistant: max 70 °C

Quality Heating warranty

10 years warranty on the electrical functioning of the heating foil. 2 to 3 years warranty (depending on the type) on the thermostat and floor sensor.

Installation manual

The Quality Heating infrared underfloor heating is designed so that it can be installed easily.

To make it even easier for you, we have prepared a comprehensive instruction manual. You can download it by clicking on the image.

[break]Thermostats overview::

Manual QH 671 simple On/Off

The Manual thermostat QH 671 is a universally applicable electronic standard on/off thermostat with night setback specially for electric underfloor heating. The QH 671 is easy to operate thanks to its control knob.

A simple but extremely accurate thermostat that takes into account the residual heat of the installation. It switches the installation off or on based on the set temperature. This ensures that the remaining heat still in the system fully benefits the room to be heated, without exceeding the desired temperature.

More information about the Manual thermostat click here

PRF-78 white or black

The PRF-78 has a beautiful design with soft touch buttons. The touch screen thermostat is a programmable room thermostat that can be connected to your electric underfloor heating. This thermostat has an eye-catching appearance and is one of the most advanced of its kind. The Soft Touch 7-Day Programmable thermostat comes with a 2-year factory warranty.

For more information about the PRF-78 click here.

PRF-79 WiFi

The user-friendly PRF-79 WiFi electric underfloor heating thermostat that can be operated with the APP. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.

More information about the PRF-79 WiFi thermostat click here

PRF-80 WiFi

WiFi thermostat featuring a beautiful design. The PRF-80 WiFi electric underfloor heating thermostat is controllable with the app. This thermostat features a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for iOS/Android: Quality Heating.

More information about the PRF-80 WiFi thermostat click here

V1 Pro Touch WiFi design thermostat Black or White

The V1 Touch WiFi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example where the temperature should be set when you are not at home.

More information about the V1 thermostat click here

Heatit z-wave TRM3 home automation thermostat Black or White

Magnum Z-wave home automation thermostat from Heatit featuring the latest developments. This thermostat can be controlled with your smartphone or tablet. Fully 7-day programmable and available in white or black. Supplied including floor sensor and Dutch manual. Thermostat works with Sensio, Fibaro and Zipato home automation systems. This thermostat is supplied standard with a floor sensor.

More information about the Z-wave thermostat click here

WiFi V3 thermostat with receiver

With the WiFi V3 thermostat with receiver relay systems are a thing of the past! Because the thermostat is powered by 2 x AA batteries, it can be placed anywhere in the house and is wirelessly connected to the receiver. The receiver can be connected to underfloor heating up to a maximum power of 3000 Watt. If you want to use more than 3000 Watt, you can easily expand the set with an additional receiver.

More information about the WiFi V3 thermostat with receiver click here

Warmup Element WiFi thermostat Black or White

The Element WiFi thermostat combines smart technology with a simple, contemporary design and is the perfect all-rounder to control Warmup heating systems.

The Element WiFi thermostat uses simple touch buttons for precise control of your underfloor heating system. The slim, unobtrusive design fits into any interior.

The Element WiFi thermostat uses SmartGeo technology to learn the user's routines; it automatically provides radiant heat at the right temperature, at the right time. With the energy monitoring function and the ability to control the thermostat remotely, using the Element with Warmup’s 'MyHeating' can reduce energy use by 25% and help save on the user's energy bill.

More information about the Warmup Element thermostat click here

Warmup 6iE WiFi thermostat

The 6iE Smart WiFi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a home performs. It automatically suggests ways to save energy, for example where the temperature should be set when you are not at home.

More information about the Warmup 6iE thermostat click here

OCD5 Busch-Jaeger and Jung

OCD5 Busch-Jaeger and Jung Unique built-in 7-day programmable thermostat with an adaptive self-learning warm-up (optimizer) control and a color touch screen "Touch Screen". Can be set to multiple languages (NL, FR, DE and English) and fits perfectly into Busch-Jaeger switching material (also in other switch materials, GIRA and ELKO). Adaptive control and energy-efficient warm-up programs. Can work with floor and room temperature or both.

More information about the OCD5 thermostat click here

WCD-5 Wifi OJ electronics

OJ Microline WCD-5 Wifi thermostat controllable with your smartphone. Very advanced WiFi thermostat with program capabilities fully configurable with your phone. The WCD-5 thermostat also makes it possible to view the power consumption of your underfloor heating. The underfloor heating thermostat is equipped with a frame set that fits standard Busch-Jaeger switch material. The WCD-5 thermostat makes it possible to switch your heating installation on at predetermined times on any day of the week.

More information about the OCD5 Wifi thermostat click here
