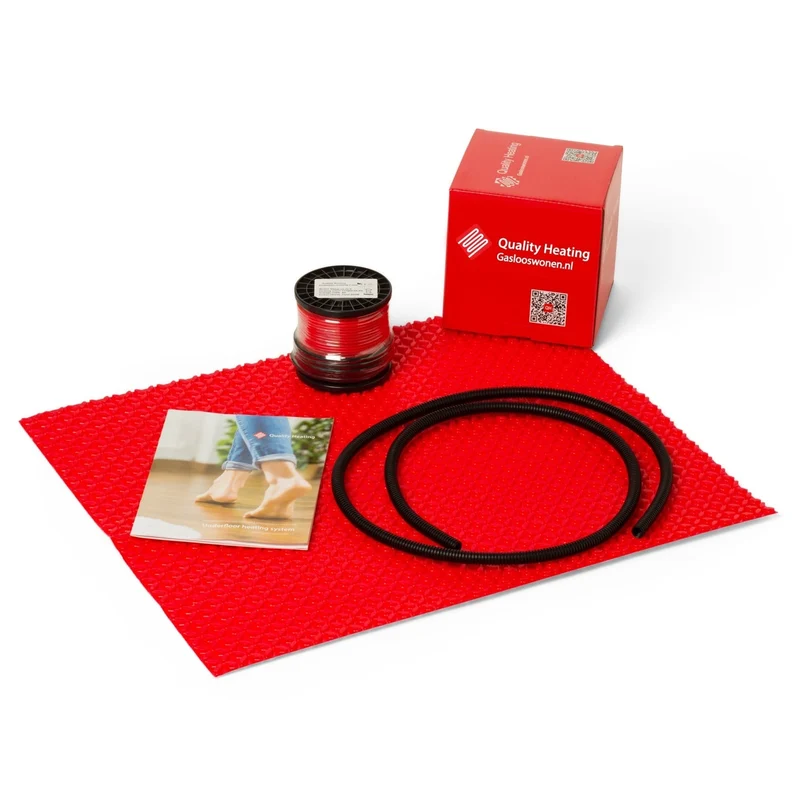

80 Watt/m² QH Grid without thermostat

The QH Grid underfloor heating system from Quality Heating is developed for energy-efficient and rapid heating. QH Grid also helps prevent cracks in tiled floors, making floor leveling unnecessary. Naturally, this system also ensures easy installation.

This new underfloor heating system from Quality Heating has a thickness of only 5 mm (including the underfloor heating cable system). The Quality Heating QH Grid can be glued directly to an existing tiled, concrete, screed or wooden floor, or installed on the ISO-64 insulation boards. Tiles can be applied directly to the QH Grid system using tile adhesive. Of course they can also be leveled.

If you follow the system build-up below, you will have heat loss of only a maximum of 4%!

• ISO-64 insulation boards 6, 10, 20 or 30 mm (optional)
• QH Grid 4.5 mm with cable system
• Tiles as floor finish or other floor finish in combination with leveling compound

Calculate total area

Choose the desired power/area and thermostat type in the selection table above next to the photo. The price will be automatically adjusted and displayed for you. Example: you have a bathroom of 3.8 m2. A total of 3.5 m2 of QH Grid system is required. You are then short by 0.3 m2. You can order this separately here.

Our cable systems are made of Teflon and have a wattage of 18 W/meter.

The QH Grid system is very handy to use in tricky corners. You can click the cable into the system yourself, so no corner is too difficult. Note that the spacing between the cables must be at least 6 mm.

Now you may wonder what spacing you should use to make the best use of the cable. This differs per wattage. The higher the wattage, the closer the cable will need to be.

Below you can see a calculation that lets you easily calculate the spacing.

You want to heat your 3 m2 bathroom with a power of 160 Watts per m2. This means a total power of 480 Watts. You should divide the heated area by the total wattage and multiply the result by 18 Watts per meter.
(3 m² : 480 Watts) x 18 Watts per meter = 0.113

The cable spacing in this case is 11 cm. The cable spacing therefore determines the power per m2.

80 Watt/m2: Auxiliary heating for large room
120 Watt/m2: Main heating for large room
160 Watt/m2: Poorly insulated room or smaller room

Are you going to level the system? Bear in mind that 5 mm of leveling compound will be used up in the QH Grid system to fill the grooves. This means that to reach the minimum height you should order 10 mm of leveling compound. Always make sure that a primer is applied to your subfloor to ensure good adhesion.

Direct leveling

Thermostats overview

PRF-78 white or black

The PRF-78 has a beautiful design with soft-touch buttons. The touch screen thermostat is a programmable room thermostat that can be connected to your electric underfloor heating. This thermostat has an eye-catching appearance and is one of the most advanced of its kind. The Soft Touch 7-Day Programmable thermostat comes with a 2-year manufacturer's warranty.

For more information about the PRF-78 click here. Would you prefer a different type of thermostat? In 'make a choice' you can add your suitable thermostat.

PRF-79 Wifi

The user-friendly PRF-79 Wifi electric underfloor heating thermostat can be operated with the APP. This thermostat is equipped with a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for IOS/Android: Quality Heating.

More information about the PRF-79 Wifi thermostat click here

PRF-80 Wifi

Wifi thermostat with a beautiful design. The PRF-80 Wifi electric underfloor heating thermostat is controllable with the app. This thermostat is equipped with a zone control system, countdown timer function, is programmable and fully controllable with the application. App available for IOS/Android: Quality Heating.

More information about the PRF-80 Wifi thermostat click here

V1 Touch Wifi thermostat Black or white

The V1 Touch Wifi thermostat with a beautiful design, controllable from a smartphone, tablet or computer. It learns how the heating system is used and the unique way a house performs. It automatically suggests ways to save energy, for example what temperature it should be set to when you are not at home.

More information about the Manual thermostat click here

Simple Manual

A simple but highly accurate thermostat that accounts for the residual heat of the installation. It switches the system off or on based on the set temperature. This ensures that heat still travelling through the system fully benefits the space to be heated without exceeding the desired temperature.

More information about the Manual thermostat click here

OCD5 Busch-Jaeger and Jung

OCD5 Busch-Jaeger and Jung. Unique recessed 7-day programmable thermostat with an adaptive self-learning start-up (optimizer) control and a color touch screen. Can be set to multiple languages (NL, FR, DE and English) and fits perfectly in Busch-Jaeger switchgear (also in other switch materials, GIRA and ELKO). Adaptive control and an energy-efficient warming program. Can be used for floor and room temperature or both.

More information about the OCD5 thermostat click here

Heatit z-wave TRM3 home automation thermostat

Magnum Z-wave home automation thermostat from Heatit featuring the latest developments. This thermostat can be controlled with your smartphone or tablet. Fully 7-day programmable and available in white or black. Supplied including floor sensor and Dutch manual. The thermostat works with Sensio, Fibaro and Zipato home automation systems. This thermostat is supplied standard with a floor sensor.

More information about the Z-wave thermostat click here

Wifi V3 thermostat with receiver

With the Wifi V3 thermostat with receiver, relay systems are a thing of the past! Because the thermostat is powered by 2 x AA batteries, it can be placed anywhere in the house and is wirelessly connected to the receiver. Up to a maximum power of 3000 Watts of underfloor heating can be connected to the receiver. If you plan to use more than 3000 Watts, you can easily expand the set with an extra receiver.

More information about the Wifi V3 thermostat with receiver click here

Warmup 6IE Wifi thermostat

The 6iE Smart Wi-Fi Thermostat, controllable from a smartphone, tablet or computer, learns how the heating system is used and the unique way a house performs. It automatically suggests ways to save energy, for example what temperature it should be set to when you are not at home.

More information about the Warmup 6IE thermostat click here

MWCD5 Wifi OJ electronics

OJ microline WCD5 Wifi thermostat operable with your smartphone. Very advanced Wifi thermostat with program options fully configurable with your phone. The WCD-5 thermostat also makes it possible to view the power consumed by your underfloor heating. The underfloor heating thermostat is equipped with a frameset that fits into standard Busch-Jaeger switchgear. The WCD-5 thermostat makes it possible to switch your heating installation on at predetermined times on any day of the week.

More information about the OCD5 Wifi thermostat click here
