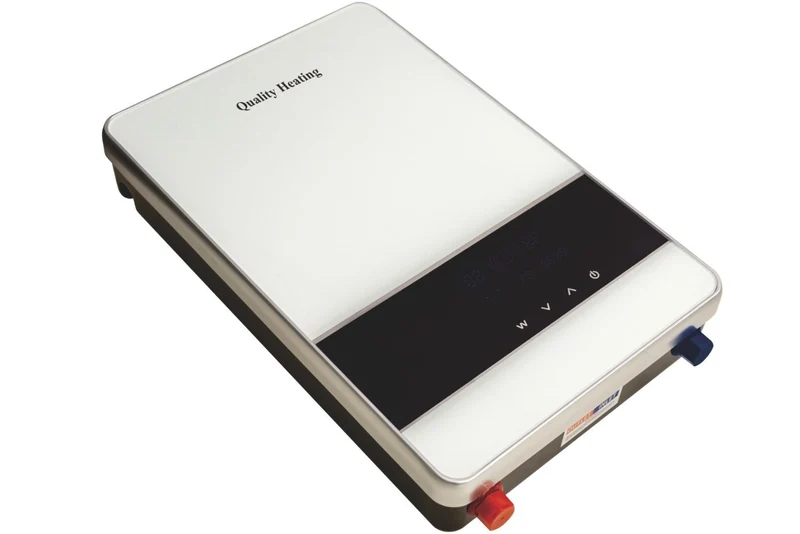

Adjustable 18 kW Tankless Water Heater from Quality Heating — 3-Phase

Efficient and Instant Hot Water with Our Flow-Through Heater

Discover the convenience and efficiency of our flow-through heater, an innovative solution for instant hot water at any time. This compact and powerful heater provides a continuous supply of hot water without waiting times, ideal for both domestic and commercial use.

Features:

Instant Hot Water: No more waiting. Our flow-through heater delivers hot water immediately when you open the tap.

Energy Efficient: By heating water only when needed, you save significantly on energy costs compared to traditional boilers.

Compact Design: The slim, space-saving design fits anywhere, from kitchen cabinets to bathrooms.

Reliable Performance: Thanks to advanced technology and high-quality materials, we guarantee long life and consistent performance.

Safety First: Equipped with multiple safety systems such as overheat protection, pressure regulation and automatic shut-off.

Applications:

Our flow-through heater is perfect for a wide range of applications, including kitchens, bathrooms, campervans and small commercial spaces. It is an ideal choice for anyone seeking comfort, efficiency and cost savings.

Installation and Maintenance:

Easy installation with clear instructions and minimal maintenance needs make this unit user-friendly. Our customer service is always ready to assist you with installation and questions.

Technical specifications

Performance - 11–24 kW
Cable cross-section (mm²) - 26.0
Specification of electricity meters - ≥ 15 [60]
Residual-current device - ≥ 50 A
Overheat protection - 95°C +3°C
Maximum temperature setting - 55°C
Mains voltage - 380 V 3N~
Rated current - 36.4 A
Working water pressure - 0.01–0.6 MPa
Degree of water resistance - IPX4
Rated pressure - 0 MPa
Water temperature control range - 30°C–55°C
Rated frequency - 50 Hz
Heating element: Stainless steel heating element
Product dimensions: 280*435*75 mm
Net weight per unit: 4.51 kg

Energy consumption information

Capacity profile: S
Energy efficiency class: A
Energy efficiency: 44%
Annual power consumption: 395 kWh
Noise level: 16 dB(A)

Note: the output temperature of the water in all tankless devices depends on the inlet temperature. When using a tankless water heater you cannot use a large rain (high-flow) shower. Connected appliances cannot be returned. Before purchasing, ask your installer/electrician whether this device is suitable for your situation. We cannot assess this for you.
