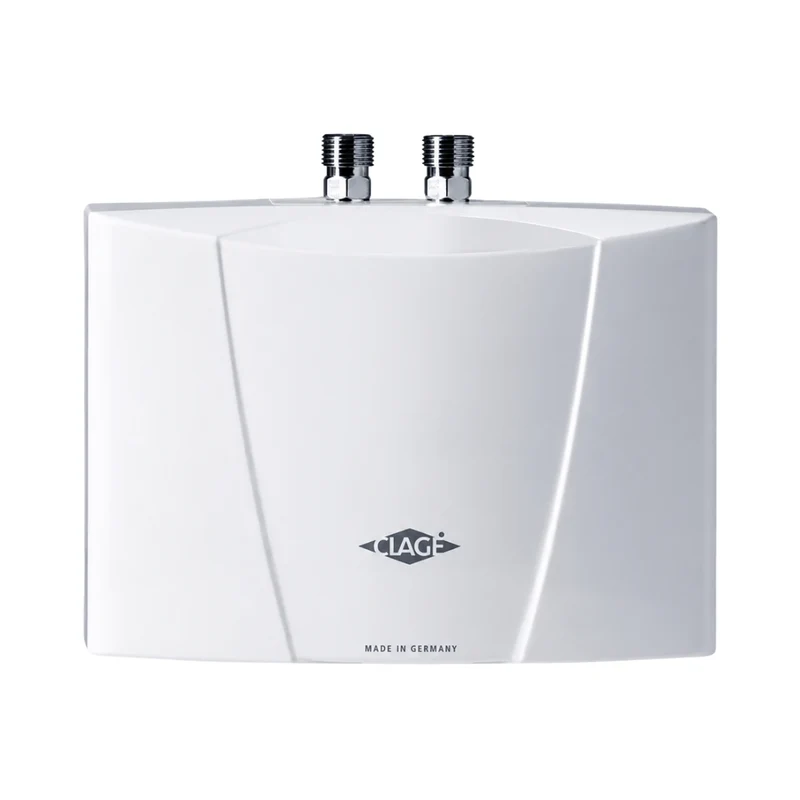

Clage M3 hydraulic flow-through heater 3.5 kW 230 Volt

The Clage MBH 3 is a compact pressureless mini flow-through heater, ideal for supplying hot water to a single washbasin. Thanks to the efficient heating system, this unit delivers hot water quickly right at the tap — without heat loss through long pipes.

The MBH 3 is a non-pressurized version and may only be used in combination with a special fitting for non-pressurized appliances. Connection to a standard pressurized tap is not permitted.

Features

• Non-pressurized design – only suitable for fittings for non-pressurized hot-water appliances
• Compact flow-through heater with efficient heating system
• Hydraulically controlled for reliable operation
• Equipped with a safety temperature limiter
• Maintenance-friendly heating element
• Includes flow regulator
• Protection class: IP25
• Dimensions (h x w x d): 13.5 × 18.6 × 8.7 cm

Technical data

Property / Value

Rated power

3.5 kW

Supply voltage

230 V (1~N/PE AC)

Rated current

15.2 A

Permissible operating pressure

0 MPa (pressureless only)

Max. outlet temperature

approx. 50 °C

Starting flow rate

1.3 l/min

Water capacity (Δt = 25 K)

2.0 l/min

Weight

1.5 kg

Application:
Suitable for washbasins or small sinks where quick hot water is desired. Thanks to the non-pressurized design, the unit is safe and energy-efficient in use.
