Ecosun P-Series infrared panel 59 x 119 cm - 700 Watt

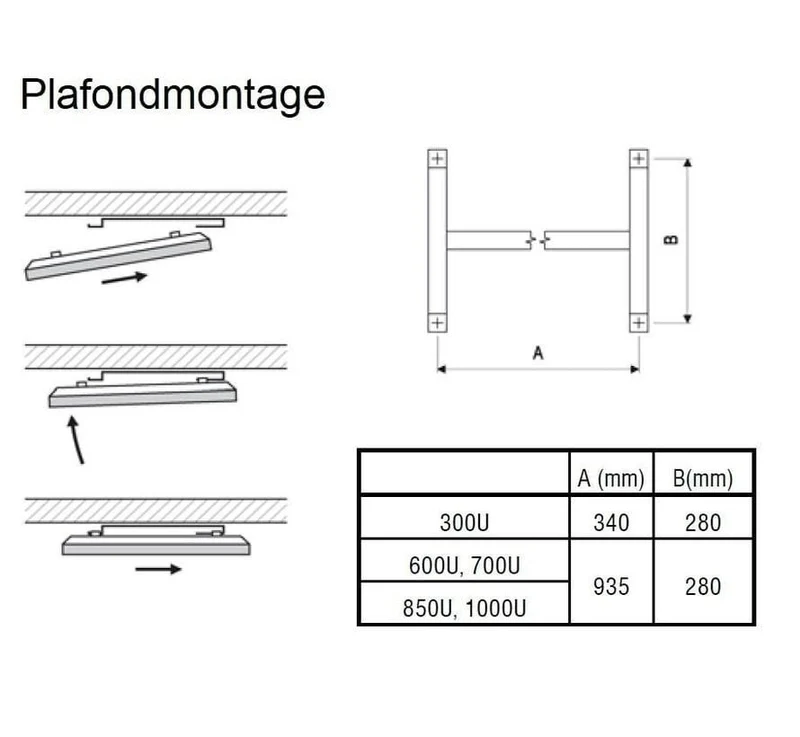

This is the newest type of infrared panel from the Ecosun brand. The Ecosun Slim is, as the name suggests, ultra-thin. Developed for living rooms and bedrooms and can also be used in humid areas such as bathrooms (IP44 class). The panel is made thinner, which provides an attractive appearance. However, the insulation value (degree of heat loss) at the back of the panels has remained the same as the other models that are built thicker. This panel can be mounted to the ceiling and is finished completely smooth in colour code RAL9010.

Required power

• 35 Watt per m³ for living rooms
• 30 Watt per m³ for bedrooms
• 60 Watt per m³ for bathrooms

The panel is supplied with

-Instruction manual
-2-meter power cable
-Mounting bracket
-5 year warranty

Controlling the panel temperature

To be able to control the temperature in your home, the infrared heating must be controlled by a thermostat. This will switch the electrical current on or off, depending on the temperature in the room.

Thermostats are available in various types, from a simple dial thermostat to digital thermostats with an extensive program. For thermostats, click here.
