Ecosun U-Series infrared panel 60 x 90 cm - 400 W

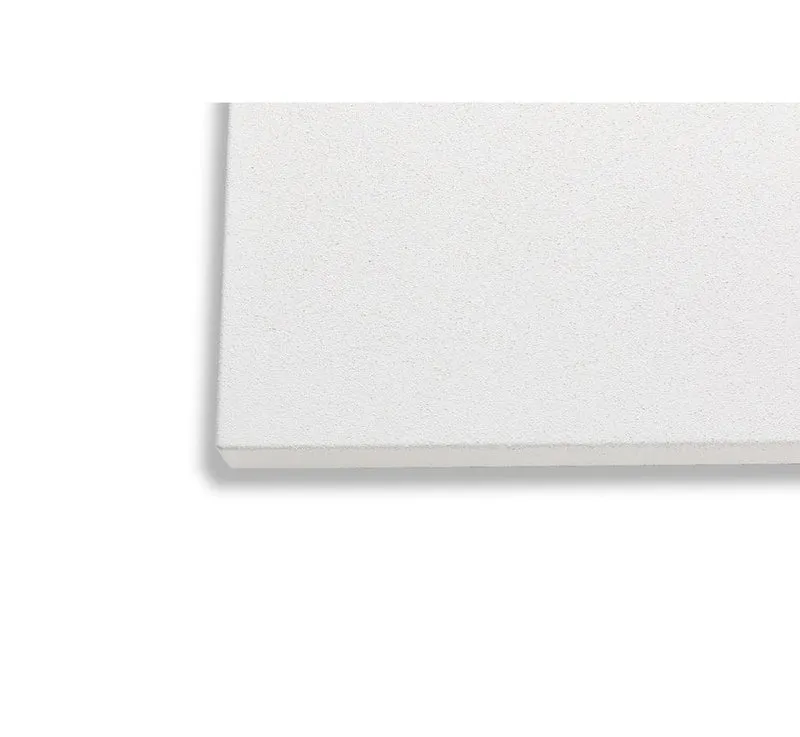

The Ecosun panel with granular texture can be easily mounted on the wall or ceiling. This panel is finished with a white textured paint, which ensures the heat is distributed evenly throughout the entire room.

Thanks to the IP44 rating this panel is also very safe and water-resistant, so you can, for example, also use it in the bathroom. This panel is constructed entirely from aluminium and is therefore very lightweight.

Features of the Ecosun panel with texture

- Fully insulated back
- Metal and coated in white RAL (9010)
- IP44 approved
- Thickness of only 30 mm
- Equipped with thermal protection so the panel never becomes hotter than 90°C

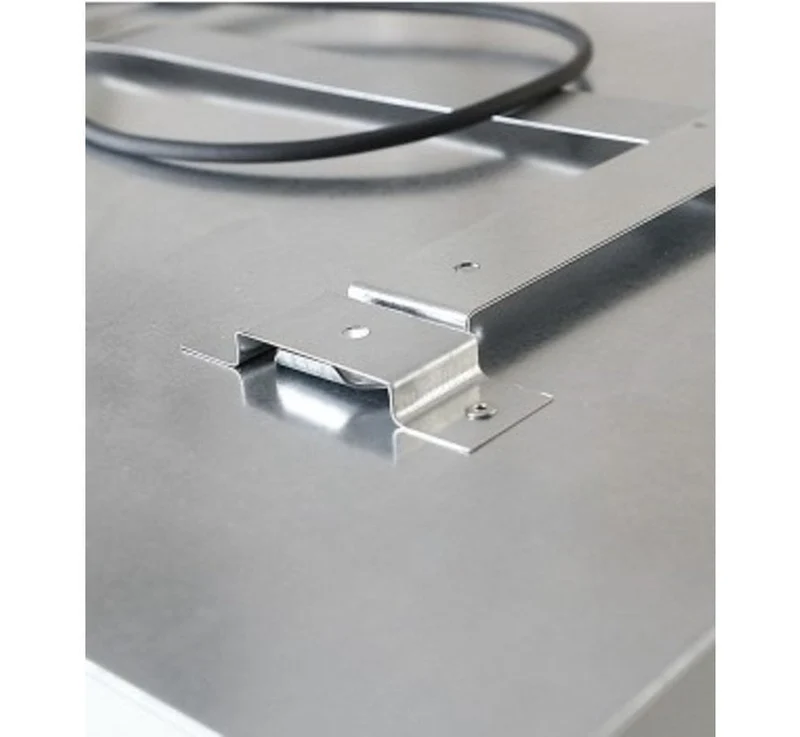

- Can be easily mounted to the ceiling thanks to the included mounting bracket
- Technical support available from 09:00 to 17:00

The panel is supplied with

-Instruction manual
-Power cable of 1.9 meters
-Mounting bracket
-5-year warranty

Required power

• 35 W per m³ for living rooms
• 30 W per m³ for bedrooms
• 60 W per m³ for bathrooms

For more information about the required power

Controlling the panel temperature

The Ecosun panels are delivered ready-to-use including a power cord. To control the temperature in your home, the infrared heating must be controlled by a thermostat. This will switch the electrical current on or off. Go to the thermostats.
