Flow-through water heater DBX 21 kW

This high-quality DBX flow-through heater or instantaneous heater has a low activation pressure, allowing hot water to be obtained fairly quickly. This Clage DBX flow-through heater 21 kW must be connected to a 3-phase supply and protected with a 25 A fuse.

Note; the outlet temperature of the water in all flow-through units depends on the inlet temperature. When using a flow-through heater you cannot use a rain (overhead) shower. Connected appliances cannot be returned. Before purchasing, ask your installer/electrician whether this appliance is suitable for your situation. We cannot assess this for you.

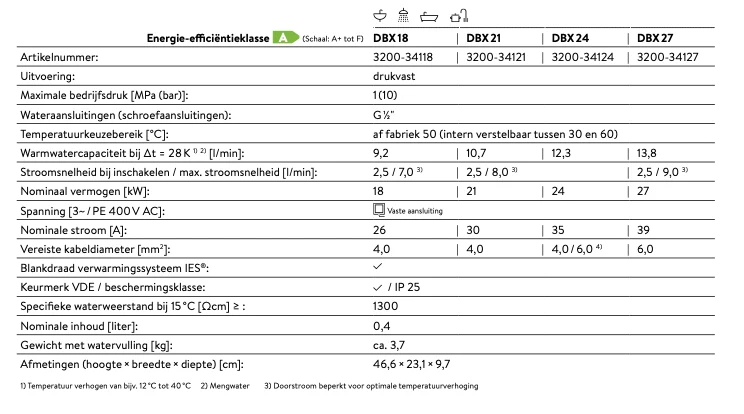

Features

	DBX 18	DBX 21	DBX 24	DBX 27
Type	Pressure-resistant
Water temperature selection range (°C)	50°C standard. (Internally adjustable between 30–60 °C)
Hot water capacity at ∆t=28K1)2) [l/min]	9.2	10.7	12.3	13.8
Flow rate at activation / max. flow rate [l/min]	2.5 / 7.0	2.5 / 8.0	2.5 / 9.0	2.5 / 9.0
Nominal power [kW]	18	21	24	27
Voltage [3~/PE 400 V AC]	Fixed connection
Nominal current [A]	26	30	35	39
Required cable cross-section [mm2]	4.0	4.0	6.0	6.0
Weight with water filling [kg]	3.7 kg
Nominal volume [liter]	0.4 liter
Protection class	IP25

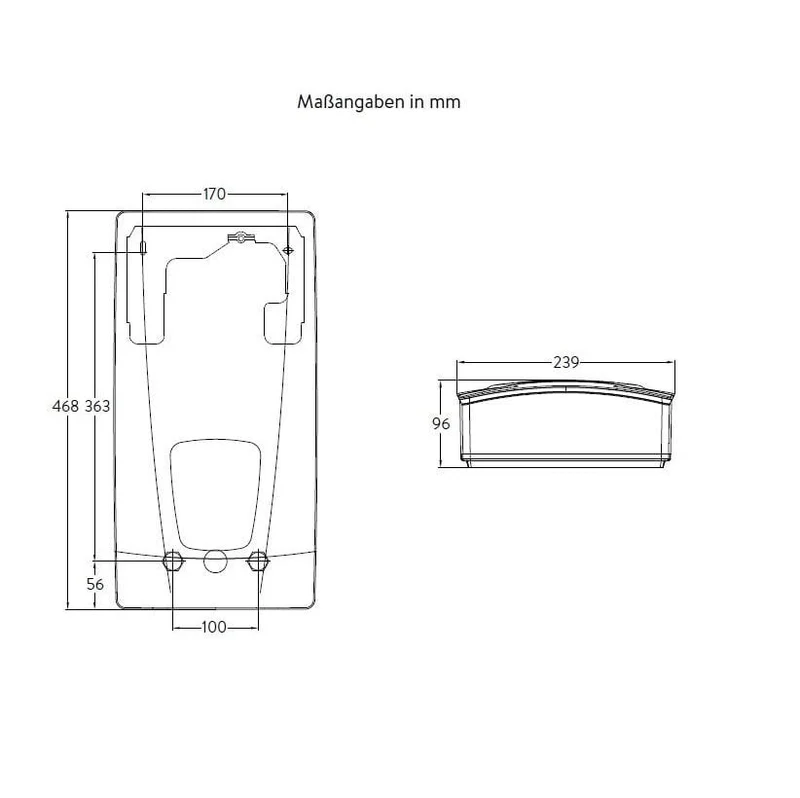

Dimensions (h x w x d) [cm]	46.6 x 23.1 x 9.7
Energy label	A
