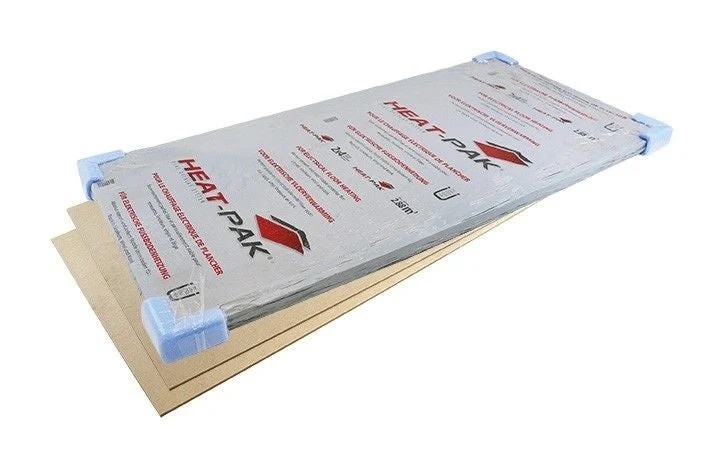

Heat Pak System Duo 2,88m2

The Heat Pak Duo system has been developed for vinyl, carpet, linoleum and PVC as floor covering. Total thickness 7mm, 4mm for the bottom board and 3mm for the top board. With Heatpak, it is possible to directly glue PVC, vinyl, linoleum or carpet or install it floating on the Heatpak. Per package 2.88m2 of surface area.

Alternative, Quality Heating Top Board own brand

Size

1200mm x 600mm

Top board thickness

4mm

Base board thickness

3mm

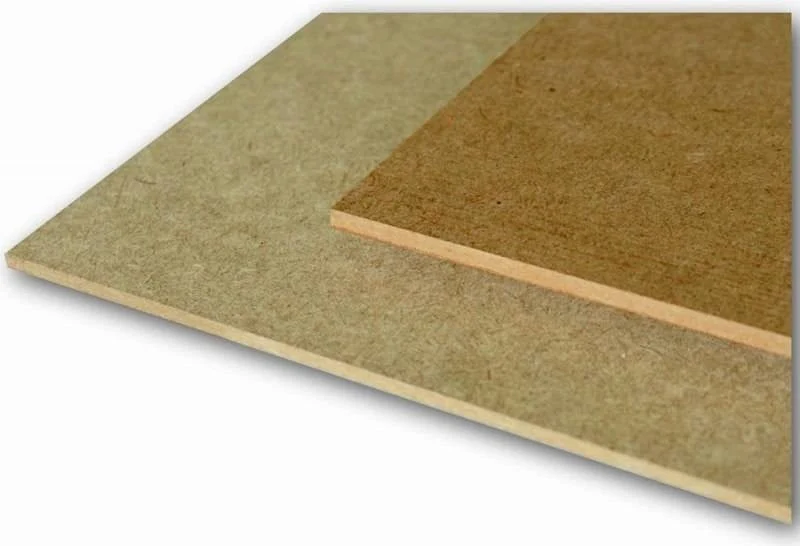

Composition

MDF, equipped with an interactive adhesive

Density (kg/m3)

770

Bending strength kg/cm2

>40

Moisture (%)

4-10

Thermal value Rm [m2.K.W.-1]

0.047

Fire class, DIN4102

B2

Covering with Heatpak

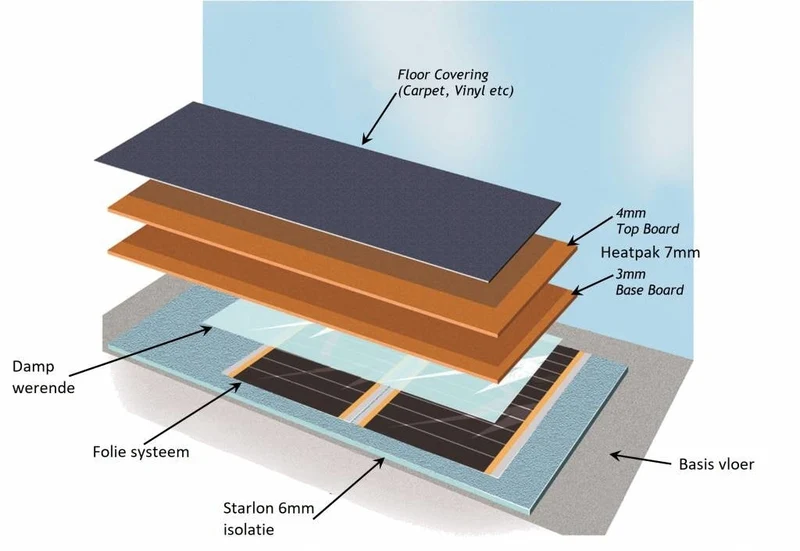

For PVC, vinyl, carpet, linoleum as floor covering, Heatpak must be used. PVC, vinyl, carpet, linoleum should not be placed directly on the underfloor heating film. Heatpak DUO consists of a 3mm base board and a 4mm top board.

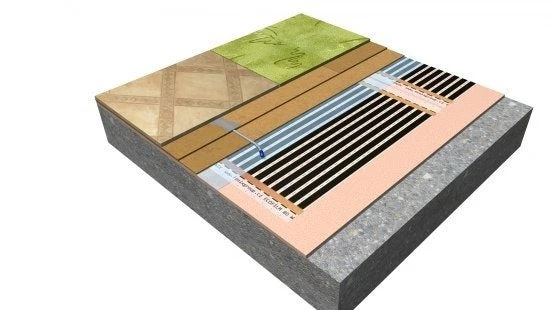

The base board should be placed floating on the underfloor heating film (non-adhesive zone). The adhesive zone is for installing the top board on the base board. The base board should be shortened in length and not in width. When placing the top board on the base board, ensure that installation is done in a staggered pattern.
