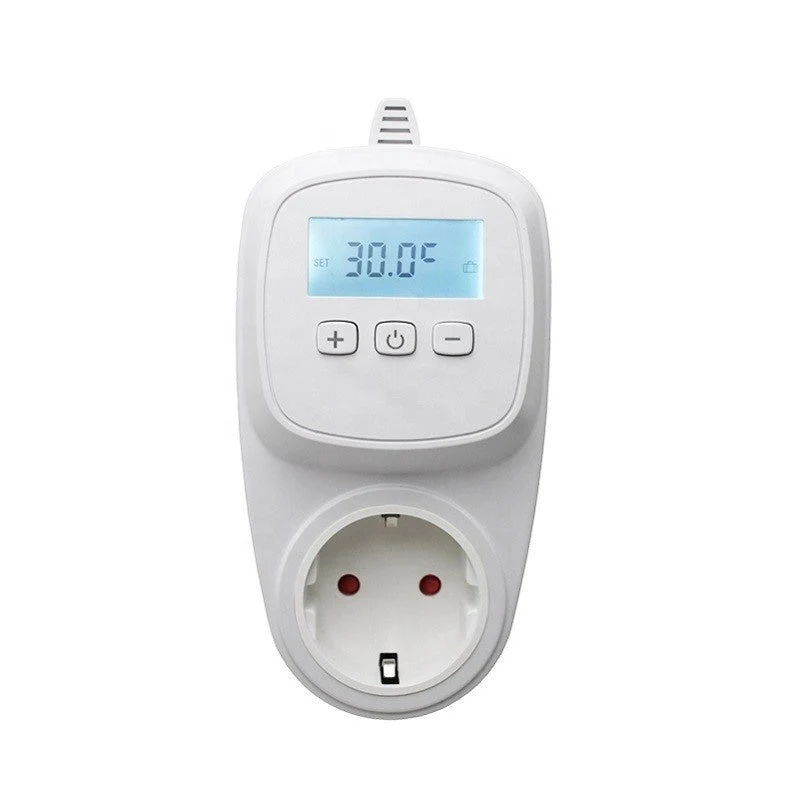

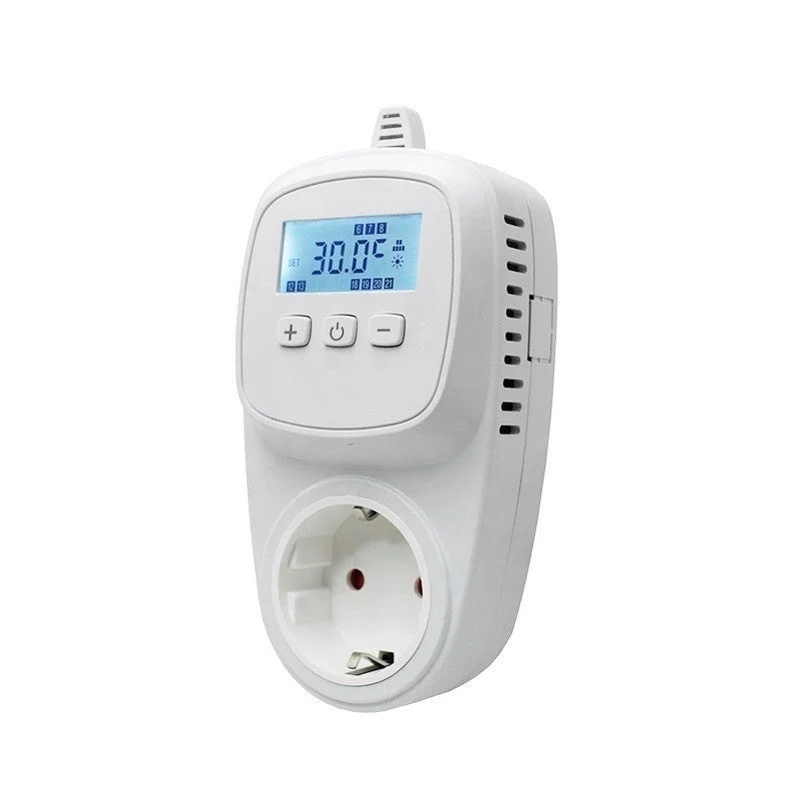

Plug-in simple thermostat

The plug-in thermostat with room temperature sensor is the simplest solution to directly use your infrared heating panel or conventional heating. You simply plug the thermostat into the wall socket and then plug the infrared panel or the central heating into the thermostat. This plug-in thermostat is not programmable.

On this model you can easily set a temperature between 5 and 45 degrees Celsius. Also particularly suitable for frost protection! (set temperature to 5 degrees)

Applications

- All infrared heating panels
- Conventional heating & central heating

Technical specifications

- Supply voltage: 230Vac ("plug-in" model)
- Output voltage: 230Vac
- IP rating: 20
- Switching capacity: 3600VA (16A) for a resistive load
- On/off switch: yes
- Temperature setting: 5 ~ 45°C, adjustable with the push buttons
- Temperature measurement: room, by internal sensor
- Self-regulating / Optimizing: no/no
- Frost protection: no
- Display indication: set temperature, measured temperature, heating
- Sensor monitoring: yes.
- Dimensions: 125 x 70 x 39 mm, display 37 x 16 mm
- Color: white/ white
- EEPROM: yes. (memory during power failure)
- Certification: CE.
- Warranty: 2 years
