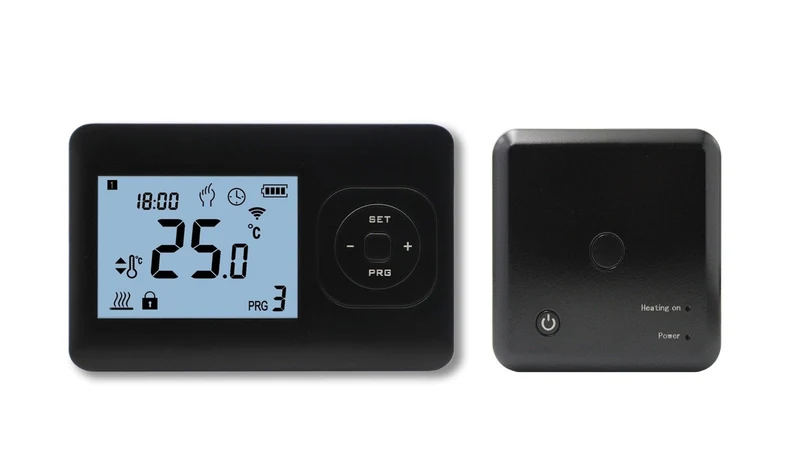

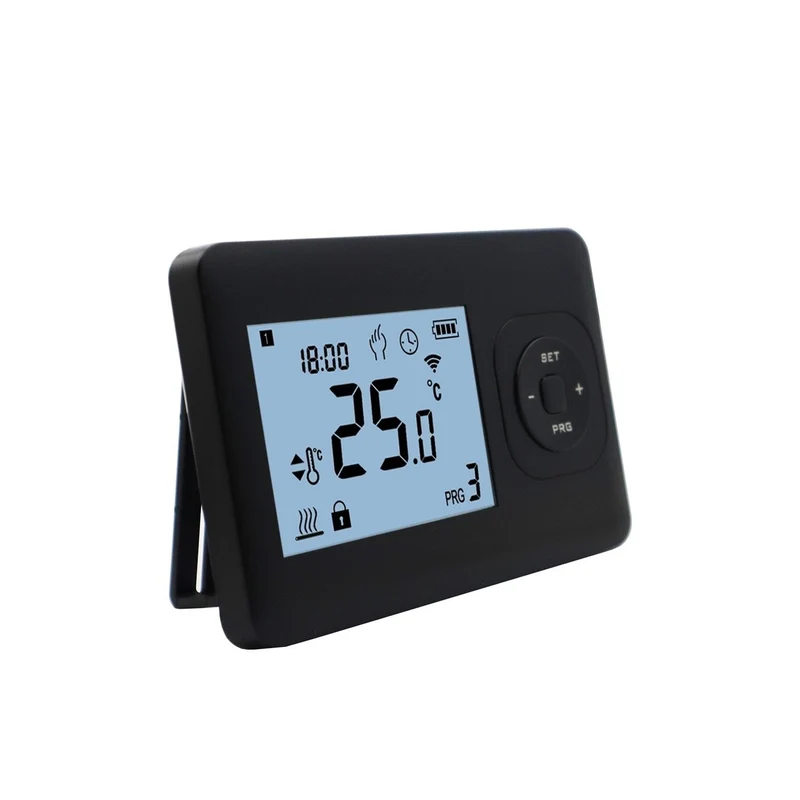

Programmable Thermostat QH Basic with Surface Receiver Black

QH Basic with included compact receiver is a very easy-to-use programmable thermostat. Up to 4 switching times per day, and separately adjustable for weekends. Backlit and clearly readable thanks to its large characters.

Supplied as a set

- Wireless thermostat.
- Comes with compact receiver 16 Amp 3600Watt can be placed anywhere.

Applications

- Infrared heating panels, also for connecting multiple panels to one thermostat.

- Maximum connection capacity 16 Amp 3600Watt - Electric heating convectors, heaters, etc.

Technical data

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 10A/250VValueIP: 30 Thermostat connection voltage: 2 x 1.5Vdc AA via batteriesFunctionsettings:


Yes, via buttonsSwitchingtimes per day: 23 switching times (independent per day)Temperaturesetting: 5-30°C ambient sensorBacklight / backlight: yesTemperaturemeasurement: ambientFrequency:


868MHzDimensions: 134x94x28mmDisplaydimensions: 69 x 49mmReceiverdimensions: 86 x 86 x 23mmReceivermodel: flush-mounted or surface-mountedColor: whiteCertification: CE, EN, EMC (according to ISO9001 and 9002)Warranty: 2 years

[Files]

Documents

Thermostat - Manual
