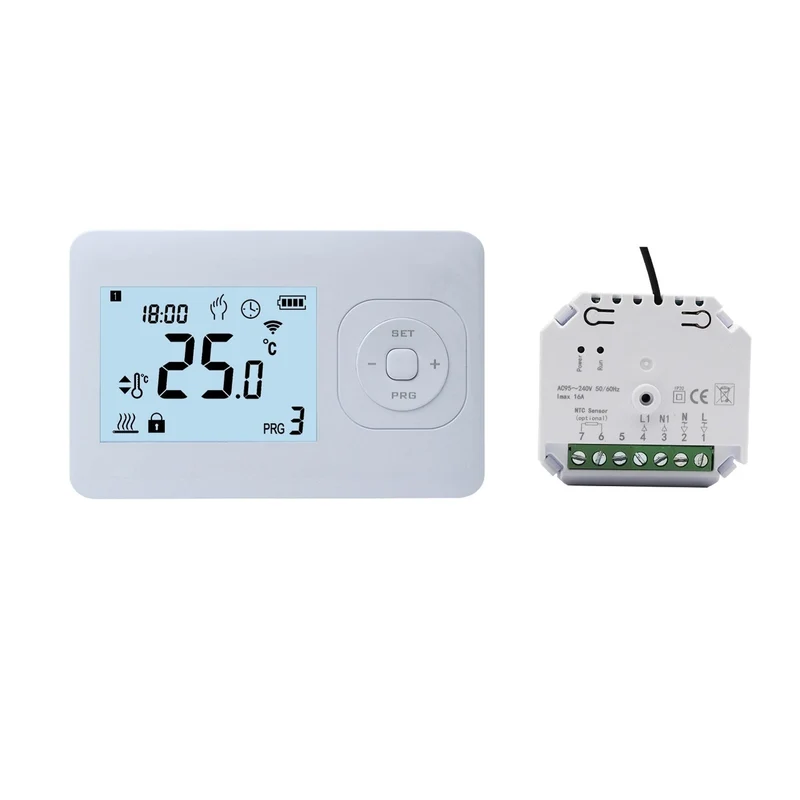

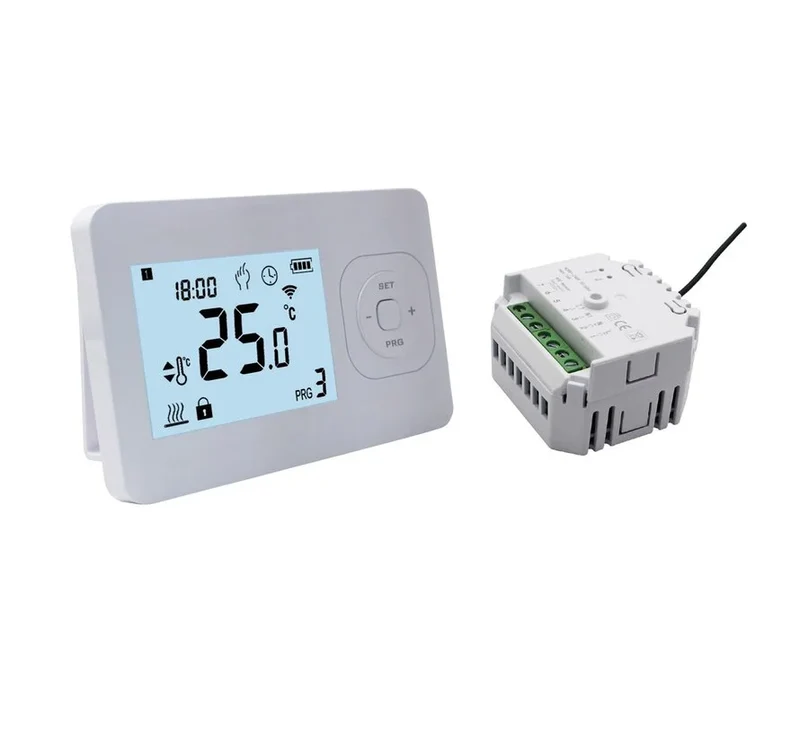

Programmable Thermostat wireless QH Basic with minirRecessed Receiver

RF OPTIMA with PCB receiver programmable thermostat very easy to operate. The PCB receiver is compact and can be mounted in a junction box or recessed. Up to 23 daily (independent) switching times or 161 weekly switching times. Backlit and clearly readable thanks to its large characters.

Supplied as a set

- 1 RF optima wireless thermostat
- Supplied with PCB receiver 5 amperes and 1200 watts max.

Applications

- Infrared heating panels also for connecting multiple panels to 1 thermostat.
- Maximum connection capacity 5Ampere 1200Watt

Technical data

Thermostat connection voltage: 2 x 1.5Vdc AA batteries.
Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 5A/250V.
IP value: 20.
Function configuration: Yes, via pushbuttons
Switching times per day: 23 switching times (independent per day)
Temperature setting: 5 ~ 30°C room sensor.
Backlight: yes
Temperature measurement: ambient.
Frequency: 868MHz.
Dimensions: 134x94x28mm.
Display size: 69 x 49mm.
Receiver size: 86 x 86 x 23mm.
Receiver model: recessed or surface-mounted, can be mounted in a standard recessed box.
Color: white.
Certification: CE, EN, EMC (according to ISO9001 and 9002).
Warranty: 2 years.

Download the instruction manual.
