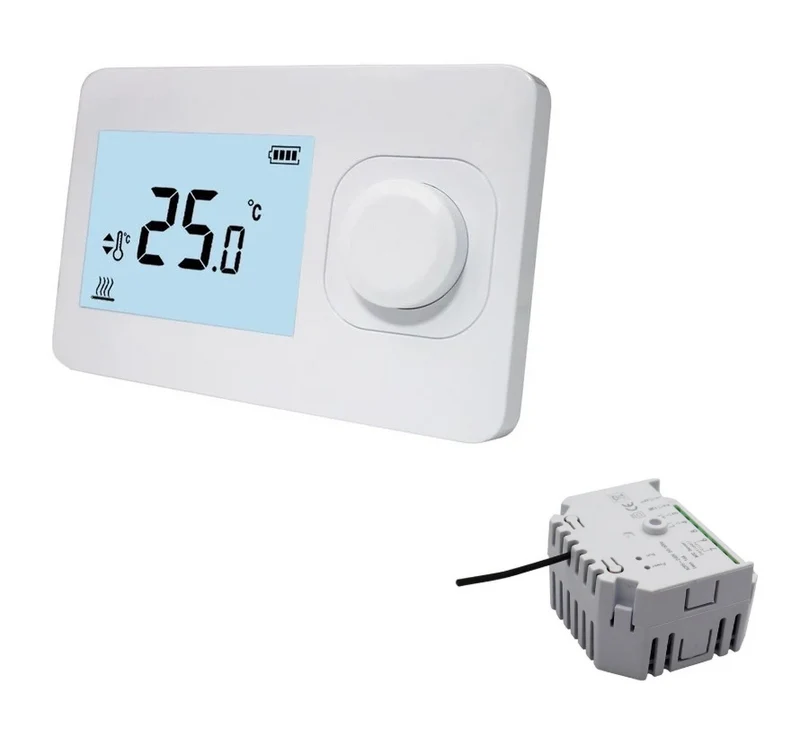

QH Basic easy thermostat Non-Programmable que including minirRecessed Receiver

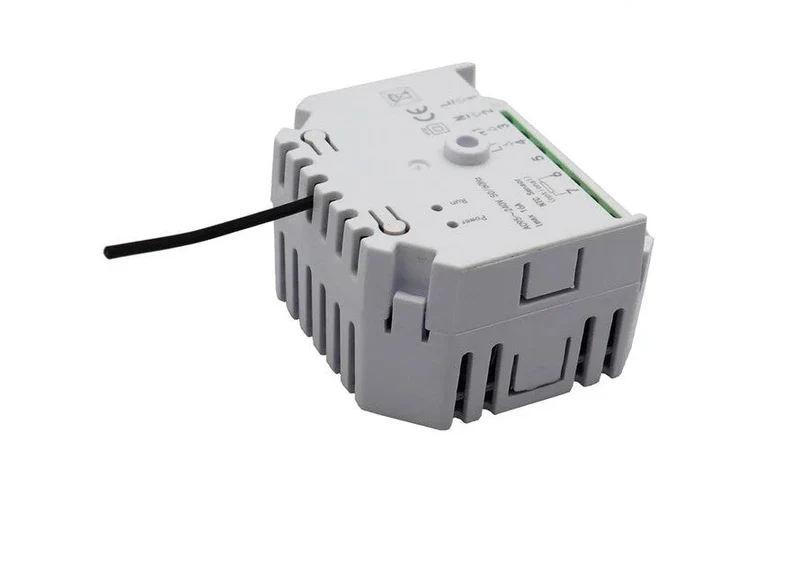

The QH Basic with PCB receiver is a very easy-to-use thermostat. The PCB receiver is compact and can be mounted in a junction box or recessed. It is equipped with backlighting and is clearly readable thanks to its large characters.

Supplied as a set:

- 1 wireless RF Optima thermostat
- Comes complete with PCB receiver 5 Amp 1200Watt max.

Applications:

- Infrared heating panels also for connecting multiple panels to 1 thermostat.
- Maximum connection capacity 5 Ampere 1200Watt

Technical data:

Thermostat connection voltage: 2 x 1.5Vdc AA batteries.
Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 5A/250V
IP rating: 20
Temperature setting: 5 ~ 30°C ambient sensor
Backlighting: yes
Temperature measurement: ambient
Frequency: 868MHz
Dimensions: 134x94x28mm
Display dimensions: 69 x 49mm
Receiver dimensions: 86 x 86 x 23mm
Receiver model: recessed or surface-mounted can be installed in standard recessed box
Color: white
Certification: CE, EN, EMC (according to ISO9001 and 9002)
Warranty: 2 years

Download the receiver wiring diagram.
