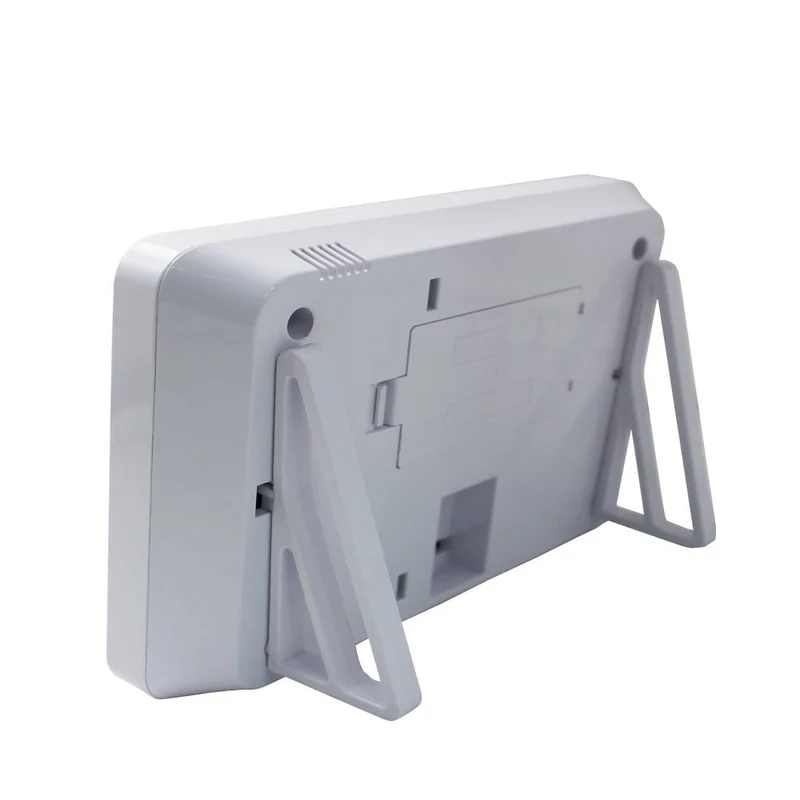

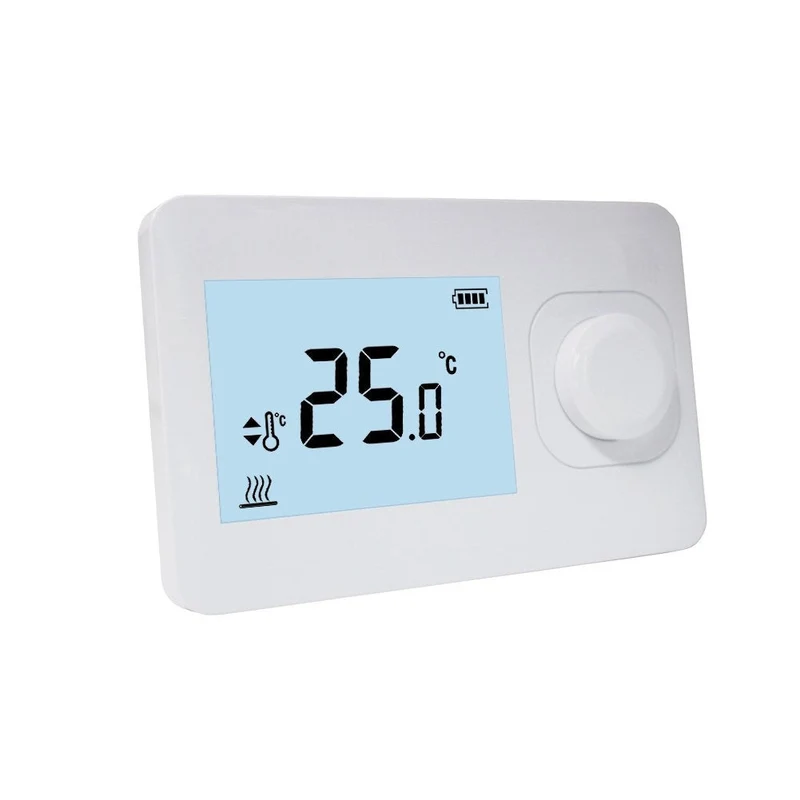

QH Basic wireless simple non-programmable surface-mounted thermostat

The QH Basic with compact receiver is a very easy-to-use thermostat. Equipped with backlighting and clearly readable thanks to the large characters.

Supplied as a set

- Wireless thermostat.
- Supplied with compact receiver 10 Ampere 2200 Watt, can be placed anywhere.

Applications

- Infrared heating panels, also for connecting multiple panels to one thermostat.
- Maximum connection power 10 Ampere 2200 Watt
- Electric heating convectors, heaters, etc.

Technical specifications

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 10A/250V
IP rating: 23
Thermostat supply voltage: 2 x 1.5V DC AA via batteries
Function settings: Yes, via push buttons
Switching times per day: 23 switching times (independent per day)
Temperature range: 5 ~ 30°C (room sensor)
Backlight / illumination: yes
Temperature measurement: room
Frequency: 868 MHz
Dimensions: 134 x 94 x 28 mm
Display dimensions: 69 x 49 mm
Receiver dimensions: 86 x 86 x 23 mm
Receiver model: flush or surface mount
Color: white
Certification: CE, EN, EMC (according to ISO 9001 and 9002)
Warranty: 2 years

[files]

Documents

QH basic - Manual

Videos

Thermostat pairing video
