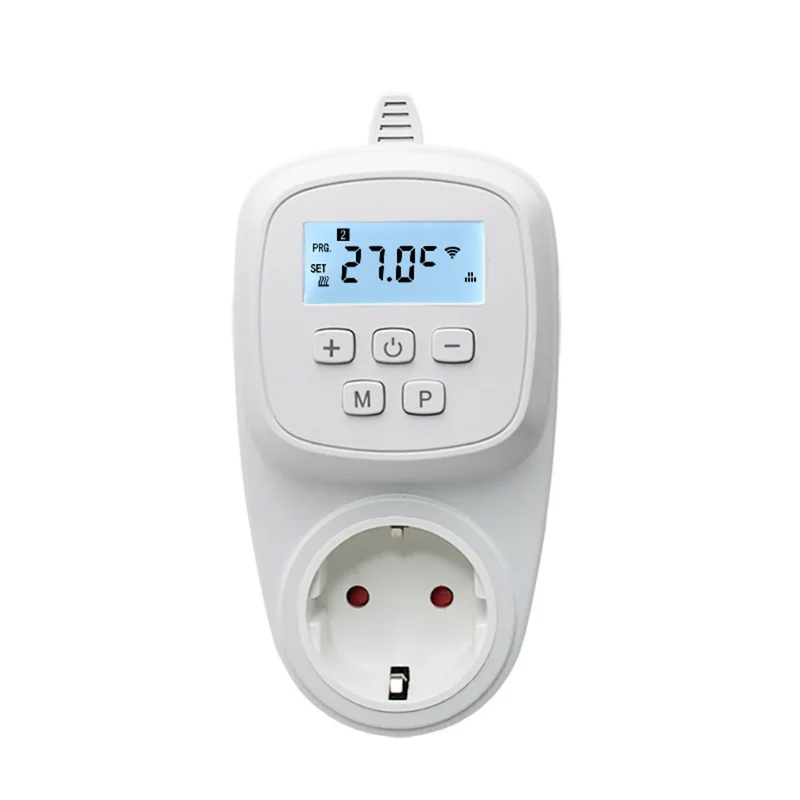

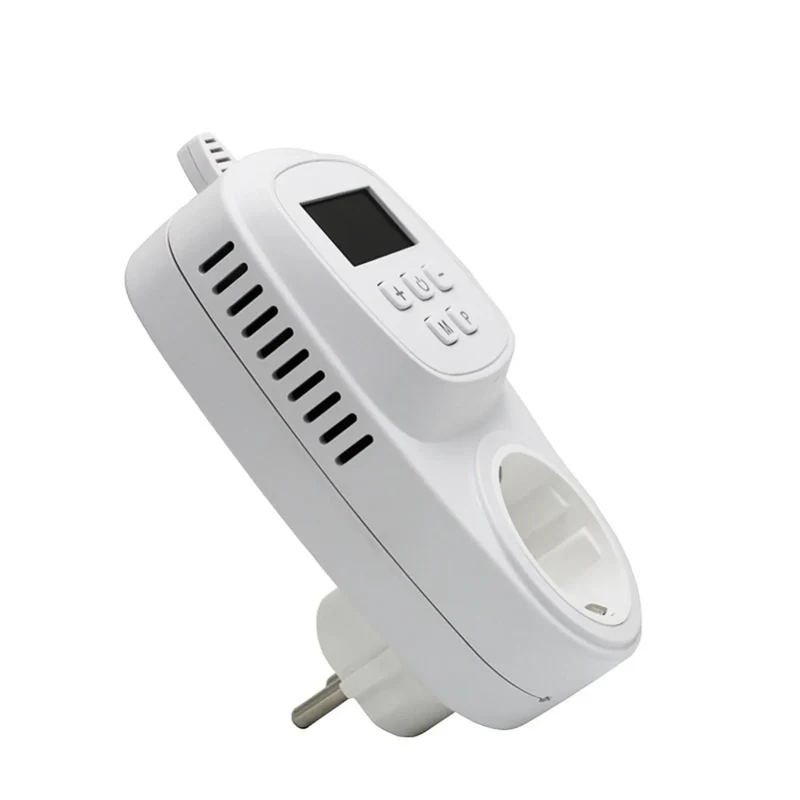

QH WiFi Plug-in Thermostat

Easy to use and set up, this is the WiFi plug-in thermostat with room sensor. Download the free Quality Heating app now.

The Quality Heating WiFi thermostat is the simplest solution for directly controlling your electric heating and infrared panels. Simply plug the thermostat into the power outlet and then connect the infrared panel plug into the thermostat. With this model, you can easily set up a program and temperature. This is directly possible through the thermostat or through the Quality Heating app.

Download the app

Applications:

- All electric heating elements up to 3600 watts.

Technical data:

- Connection voltage: 230Vac ("plug-in" model)
- Output voltage: 230Vac
- Frost protection
- Child lock
- Switching power: 3600VA (16A) with ohmic load
- On/off switch: yes
- Temperature setting: 5 ~ 35°C, adjustable with push buttons
- Clock function: no
- Temperature measurement: room, via internal sensor
- Self-regulating / Optimizer: no/no
- Frost protection: no
- Display screen: set temperature, temperature to measure, heating.
- Sensor monitoring: yes
- Dimensions: 125 x 70 x 39mm, display 37 x 16mm
- Color: white/white
- EEPROM: yes. (memory in case of power failure)
- Certification: CE
- Warranty: 2 years

Documents

Thermostat - Manual
