Second chance - QH-HL Series infrared panel with LED lighting 63 x 128 cm - 840 Watt - Default

Please note: second chance item. The original box was damaged during delivery, so the packaging may have dents and small tears. The product itself is complete and no parts are missing. Functionally the item is unchanged; the damage is limited to the outer packaging.

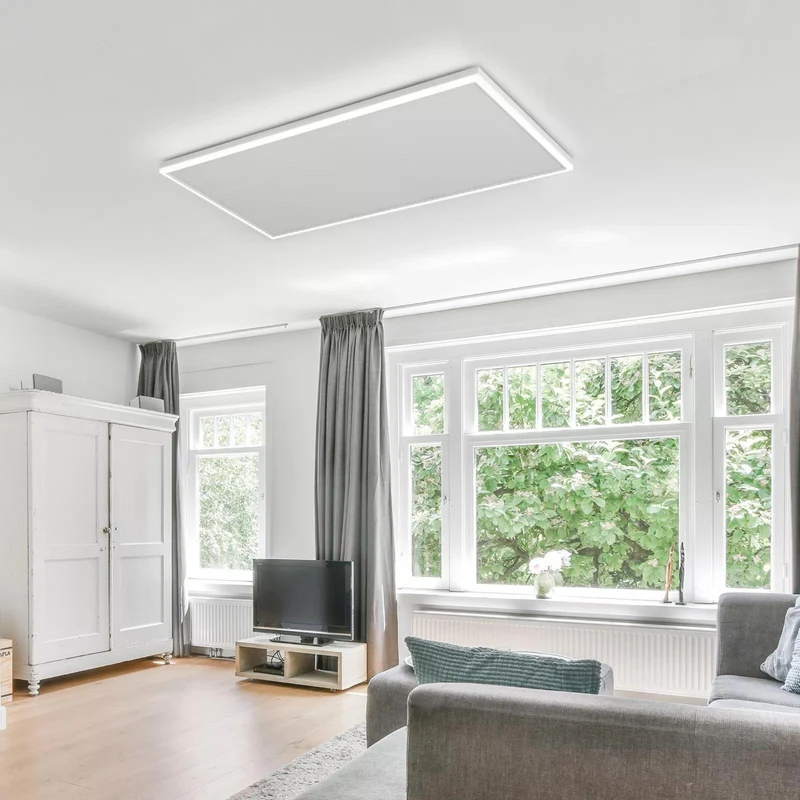

The Quality Heating HT panel with LED lighting can be easily mounted to the ceiling. This panel features a white smooth finish and an integrated adjustable LED lighting. A remote control thermostat is included as standard. This remote control thermostat can be easily mounted on the wall. With the remote control thermostat you can easily set the desired temperature and program. The LED lighting is dimmable in steps (25, 50, 75 or 100%) or smoothly (5-100%) and can be switched between 3 light colors: Cool white (6000K), Warm white (3000K) or combined for daylight (4500K). Of course, you can also set the desired room temperature with this thermostat. If you want to use this panel in the bathroom, that is also possible. The panel has an IP52 rating, making it safe and splash-resistant.

Features of the Quality Heating HT panel with LED

- Fully insulated back
- Panel dimensions 630*1280*35 mm
- Metal and coated in white RAL (9016)
- IP52 rated
- Thickness of only 35 mm
- Equipped with thermal protection so the panel never gets hotter than 130°C
- Can only be mounted to the ceiling with the supplied mounting screws
- Equipped with LED ambient lighting (warm white)
- Technical support available from 09:00 to 17:00

Lumen count

128 x 63 cm, 3300-3400 lumens

The panel is delivered including

- Instruction manual
- 1.8 m power cable
- Remote control 86*86*23 mm (without batteries)
- Mounting screws with wall plugs

Required power

• 35 Watt per m³ for living rooms
• 30 Watt per m³ for bedrooms
• 60 Watt per m³ for bathrooms

[files]

Documents

HH LED - Manual
