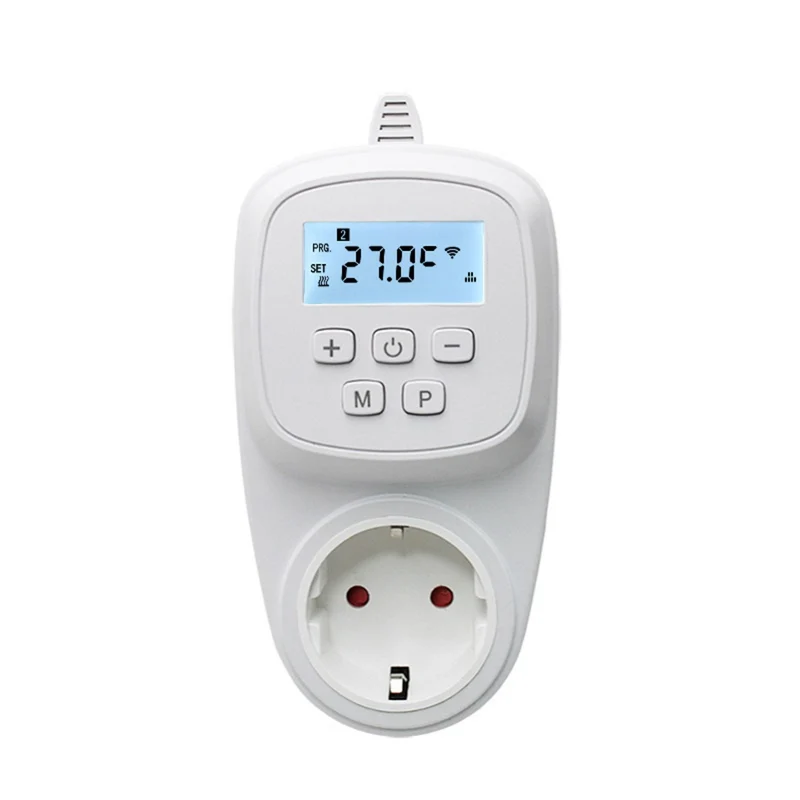

Thermostat QH-Stop

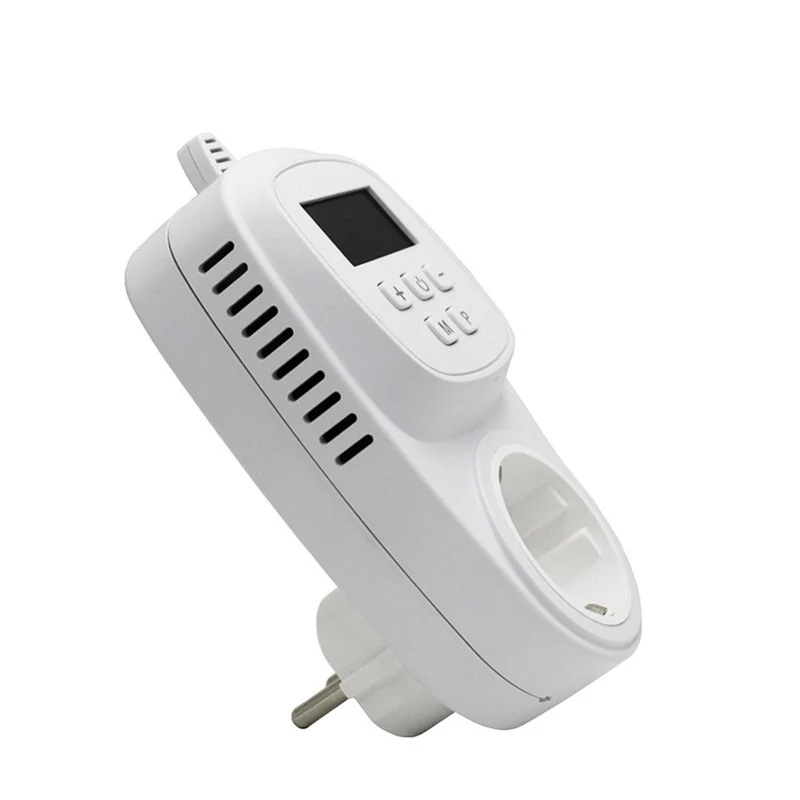

Easy to operate and configure, that's the QH-02TP programmable plug-in thermostat with ambient sensor.

The QH-02TP thermostat from Quality Heating is the simplest solution to operate your electric heater and infrared panel. Simply plug the thermostat into the power outlet and then connect the infrared panel to the thermostat. This particular model features an adjustable 6-day clock program.

In this model, you can easily adjust a temperature between 5 and 35 degrees Celsius. It's also ideal for frost protection. (set the temperature to 5 degrees)

Applications:

- All heaters or electrical appliances up to 3600 watts.

Technical data:

- Connection voltage: 230Vac ("plug-in" model)
- Output voltage: 230Vac
- Anti-freeze protection
- Child lock
- Switching capacity: 3600VA (16A) with resistive load
- On/off switch: yes
- Temperature setting: 5 ~ 35°C, adjustable via buttons
- Clock function: 7 days programmable
- Temperature measurement: ambient, via internal sensor
- Self-regulation/ Optimization: no/no
- Frost protection: no
- Display indication: programmed temperature, measured temperature, heating.
- Sensor monitoring: yes
- Dimensions: 125 x 70 x 39 mm, display 37 x 16 mm
- Color: white/white
- EEPROM: yes (memory in case of power outage)
- Certification: CE
- Warranty: 2 years
