Merk: Chauffage electrique

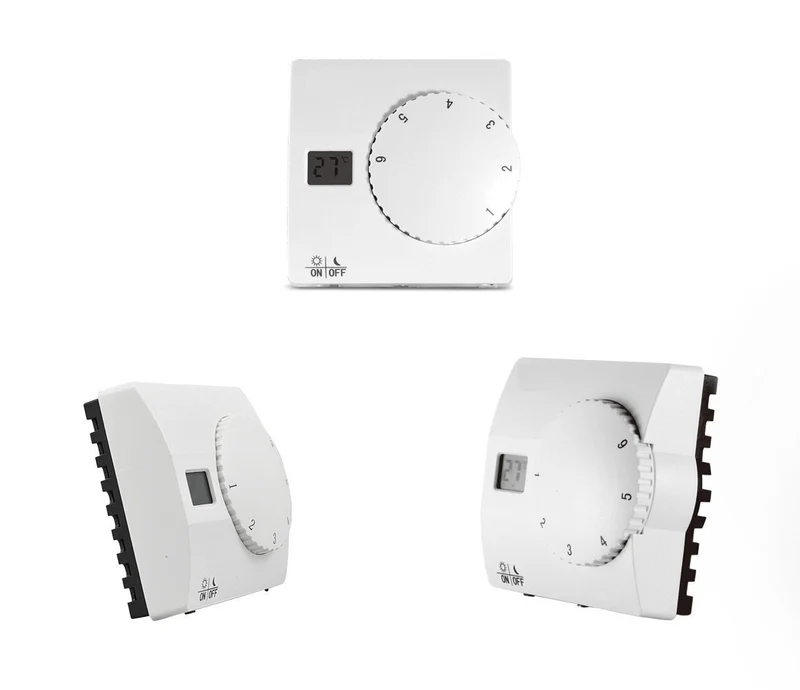

Thermostat Simple Surface SAS816
Beschrijving
The SAS816 surface-mount thermostat is a simple mechanical (bimetallic) thermostat that can be used with conventional heating systems, as well as with electric heating systems such as patio heating and with our radiant panels. The SAS816 thermostat features an effective temperature range of 5 ~ 30 ˚C, which is more than sufficient for most applications.
Applications
- Conventional heating - IR Panels - Underfloor heating
Technical Data
Connection voltage: 0~230Vac, 15A, 50HZ IP rating: 21 Switching capacity: 3450VA (230Vac / 15A) with resistive load, via changeover contact Neon light: no On/off switch:
yes Temperature adjustment: 5 ~ 30°C Temperature measurement: bimetallic temperature sensor in the thermostat Dimensions: 76 x 76 x 25mm Color: cream Certification: CE.
Warranty: 2 years
Download the surface thermostat installation manual.
