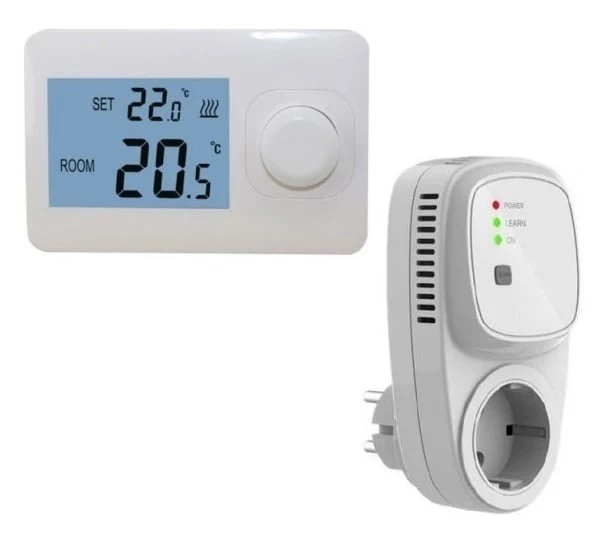

Thermostat simple wireless QH Basic Non-Programmable with Plug-in Receiver

The QH Basic non-programmable thermostat with plug-in receiver is a very easy-to-use programmable thermostat. The plug-in receiver can be easily placed in the outlet. Possibility of 4 switching moments per day, and separately adjustable on weekends. Backlit and clearly readable thanks to its large characters.

Supplied as a set

- 1 QH Basic wireless thermostat unit
- 1 plug-in receiver unit (16 Amp.)
- 1 wall bracket/frame unit

Applications

- Electric heating

Technical data

Thermostat connection voltage: 2 x 1.5Vdc AA batteries.
Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 10A/250V
Automatic heating/cooling: n/a
IP rating: 20.
Function settings: Yes, via push buttons
Temperature adjustment: 5 ~ 60°C ambient sensor.
Backlight: yes
Temperature measurement: ambient.
Frequency: 868MHz.
Dimensions: 134x94x28mm.
Display size: 69 x 49mm.
Receiver size: 86 x 86 x 23mm.
Receiver model: flush-mounted or surface-mounted.
Color: white.
Certification: CE, EN, EMC (according to ISO9001 and 9002).
Warranty: 2 years.

[Files]

Documents

QH basic - Manual

Videos

Thermostat pairing video
