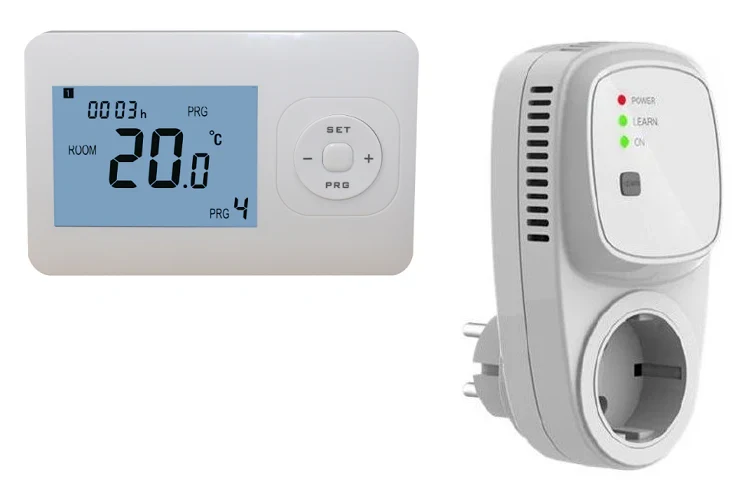

Thermostat White QH-Basic with Plug-in Receiver included

QH Basic included with plug-in receiver is a very easy to use programmable thermostat. Possibility of 4 switching times per day, and separately adjustable for weekends. Backlit and clearly readable thanks to its large characters.

Supply

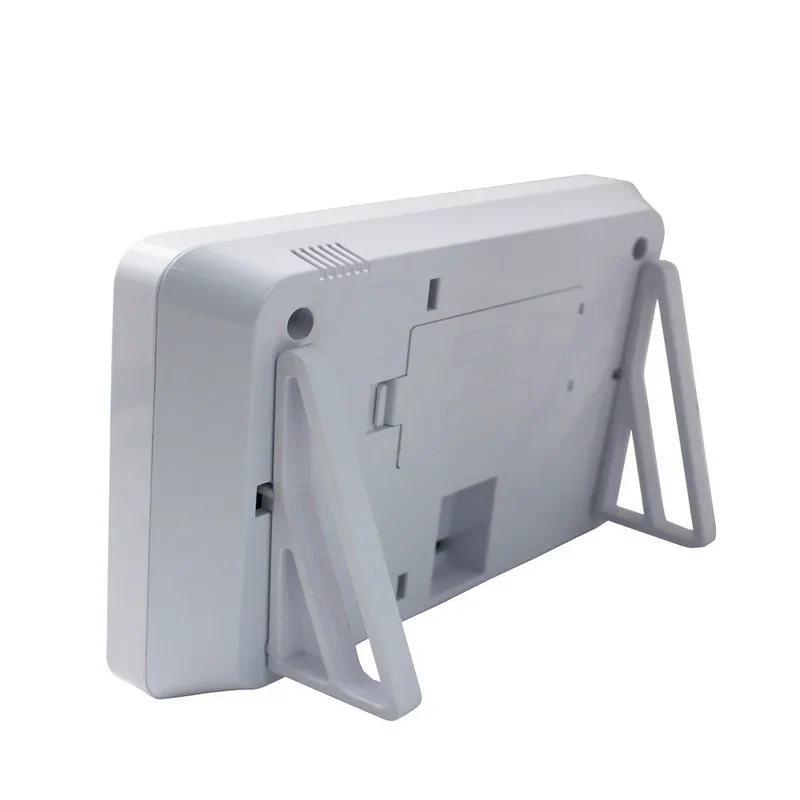

- One wireless thermostat with wall bracket
-One TC-400 receiver (if you are going to connect multiple IR panels to the QH Basic thermostat, you will also need multiple receivers (TC-400)).

Applications

- Infrared heating panels, also for connecting multiple panels to one thermostat.
- Maximum connection capacity is 16 Amp/ 3600Watt.

Technical Data

Receiver input/output voltage: 230Vac, 50Hz / potential-free contact (NO/NC), maximum 10A/250V

IP value: 20 Thermostat connection voltage: 2 x 1.5Vdc AA via batteries
Function configuration: Yes, via push buttons
Switching times per day: 4 switching times (per day)
Temperature setting: 5 ~ 30°C room sensor
Backlight: yes
Temperature measurement: ambient
Frequency: 868 MHz
Dimensions: 134x94x28mm
Screen dimensions: 69 x 49mm
Receiver dimensions: 86 x 86 x 23mm
Receiver model: recessed or surface mount
Color: white

Certification: CE, EN, EMC (according to ISO9001 and 9002) Warranty: 2 years
