Warmup 150 Watt Stickymat

Warmup's electric underfloor heating systems are made from high-quality materials and are extremely suitable for professional use. In addition, Warmup products are characterised by being easy to install, even by non-professional installers. Download the brochure for the Warmup StickyMat.

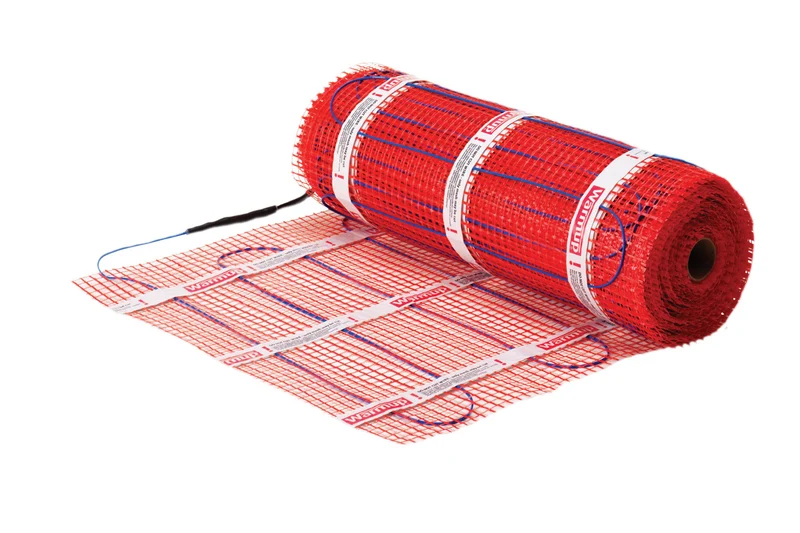

The 'StickyMat' system consists of a thin electric underfloor heating cable evenly distributed over a self-adhesive fibre mat. You can therefore place this electric heating mat directly on your subfloor without adhesive. The mat's self-adhesive property makes this installation method the fastest of its kind.

The Warmup electric underfloor heating system uses the Warmup twin heating cable, which only needs to be connected to one side of the thermostat. The electric heating mat is strong but very thin, making this underfloor heating system ideal for low build-up heights.

Features of the Warmup StickyMat system:

• Thinnest underfloor heating cable: 2 mm.
• Made from Teflon instead of the commonly used PVC (Quality Heating heating cable is also made from Teflon).
• Self-adhesive heating mat for quick and safe installation.
• Quick installation method: simply roll the heating mat out over the subfloor.
• The heating mat can be easily moved without losing its adhesive properties.
• Thanks to its self-adhesive backing the mat is also firmly fixed to the applied levelling compound.
• Flexible: there is no need to adapt the system to your situation.
• Approved by: ASTA BEAB, KEMA, GS, CERTIF, VDE, CE
• Lifetime warranty
• SafetyNet installation warranty


Technical specifications

• Power: 150 Watts per m2
• Consumption: 0.7 A
• Supply: 230 V AC, ±15%, 50 Hz
• Width: 0.5 metre
• Mat thickness: 2 mm
• Connection cable: 3.0 metre
• Ø resistance cable: 1.8 mm
• Outer sheath: Teflon (fluoropolymer)
• CE, BEAB certification

Installation

For technical questions before or during installation you can contact one of our heating advisors by phone.

Quality Heating's electric underfloor heating is designed for easy installation.

Tips:

1. Measure the total area of the room to be heated - leave 20 cm from the edge and do not place under toilets, fixed furniture attached to the floor or under shower trays. For a heating area of, for example, 3.8 m2, choose a 3.5 m2 mat set.
2. The Quality Heating mat sets are 50 cm wide. For a 3.5 m2 mat you will receive a mat 7 metres long at 50 cm wide. Adjacent runs can be placed next to each other. You can cut the mat's mesh yourself to create turns. Never cut the mat's cable to shorten it.
3. If you have a wooden subfloor you are required to use the ISO-64 insulation boards. The supplied Fastheat ensures faster warm-up of the underfloor heating. This primer can also be used as a primer for the levelling compound.
4. Place the floor sensor in a separate conduit. The sensor must emerge between the underfloor heating cables for an accurate measurement. Once the mats are in place, you can tile directly over them or spread a layer of levelling compound over the mats.
